First Look at Exchanges

When I tried to explain an FT8 exchange to colleagues I got the idea that I should unravel some as I hear them and make a web page of them. I got the unraveling done that evening. Here I take a first look the next morning.

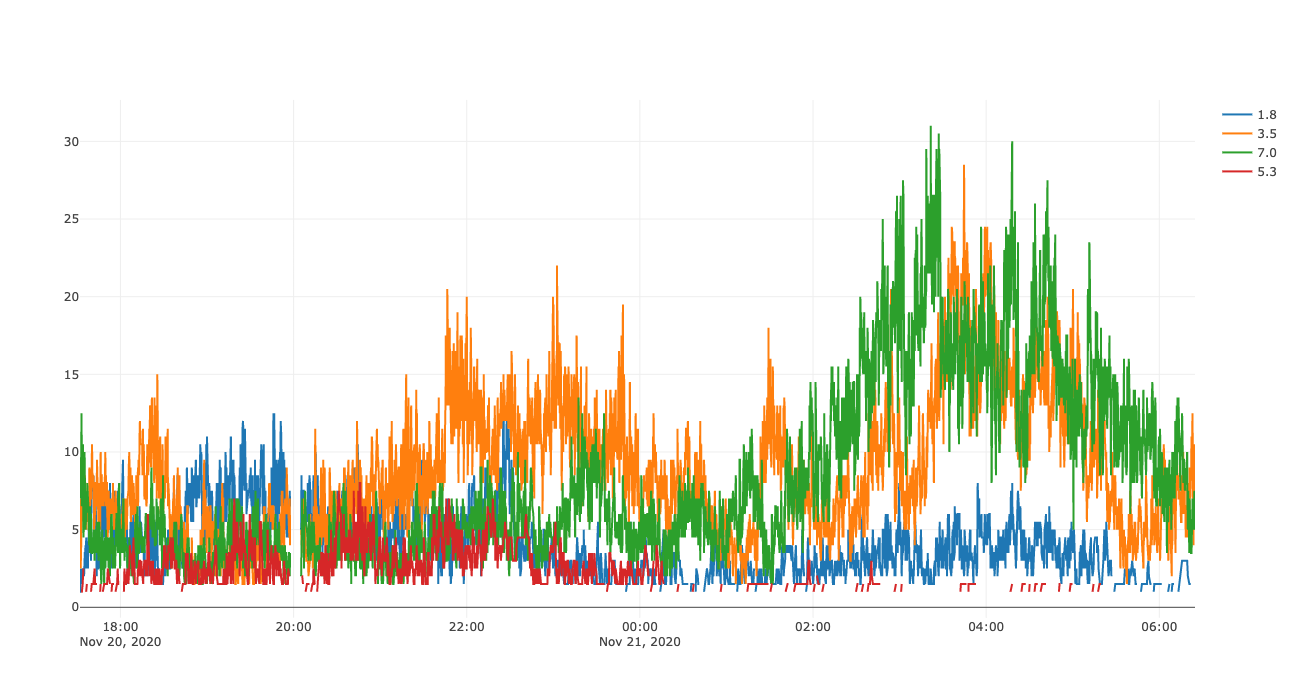

The bands were pretty quiet until 40 meters picked up after midnight. expand

The script reported call signs in alphabetical order, the number of exchanges heard and the information passed on the last transmission. I list these prefixed by the number of minutes elapsed since this last entry.

572.0 F4FCE - N5AO x1 RR73 571.7 W4ABF - WB4JTT x2 73 571.7 N6AKO - W7BOB x1 73 571.7 KB7JJG - KC2LST x1 73 571.7 N6HDV - N8BV x1 DM12 571.5 F4HJO - K0JY x1 DM68 571.5 KM6LBW - N5AO x1 -11 571.5 KA0JZX - XE1KK x1 RR73 571.5 MU0MXF - NR1DX x1 73 571.2 IZ3XJM - KE3QZ x2 RR73 571.2 KY0R - N7UR x2 DM78 571.0 WB6JJJ - XE2JS x2 73 571.0 AA4DD - EA6ET x1 EM86

Still unsure what further display would be useful I thought I should take a look at the data. I patched in a downloader to dump the exchange history which maps a callsign pair to an array of spots. json

Here is a typical entry where I heard one side of the tail end of an exchange.

"HP2AT - NN5O": [ { "time": "2020-11-21T06:03:15Z", "frequency": 5357633, "snr": -9, "dt": 0.2, "msg": "HP2AT NN5O +00", "distance": null, "call": "NN5O", "locator": null }, { "time": "2020-11-21T06:03:45Z", "frequency": 5357633, "snr": -8, "dt": 0.2, "msg": "HP2AT NN5O RR73", "distance": null, "call": "NN5O", "locator": null } ]

pages/first-look-at-exchanges

I fed this file into jq, the command line json inspector, and wrote some queries.

Who that I heard call CQ got the most responses that I also heard? Here the top 10.

jq '.[][0].msg' | \ grep '"CQ '| sort | uniq -c | sort -nr | head -10 42 "CQ K0TPP EM48" 42 "CQ HL5FUA PM57" 36 "CQ AA2MF EL87" 29 "CQ NA RM0F QN16" 29 "CQ KI0E DN13" 22 "CQ DX JF8QNF QN02" 19 "CQ AE7RN DN45" 18 "CQ DX N4QWZ EM66" 18 "CQ AG5XI EL09" 17 "CQ NF5KF EL96"
